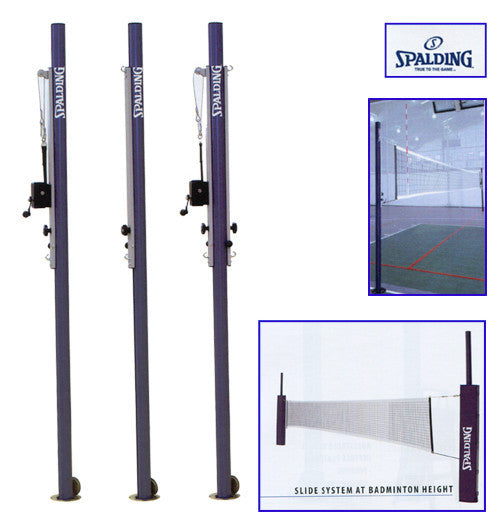

Spalding Two Court Slide Multi Sport Complete System
Spalding Two Court Slide Multi Sport Complete System
SKU:MA23700
Couldn't load pickup availability
Spalding Slide Multi Sport Net System is one of the easiest to use and most versatile multi sport net systems on the market.
GENERAL DIMENSIONS: Spalding's Slide volleyball uprights Are 3.0" (76mm) diameter extruded uprights and are marked For men's, women's, junior high, elementary, badminton, and tennis regulation net height. The adjustments are continuous; So fine adjustments can be made to ensure correct net height for any situation.
CONSTRUCTION:
Uprights: Each upright shall be manufactured from extruded high strength aluminum tubing with A 3.010" (76mm) O.D. and structural internal geometry for added strength. Each upright shall be 107" (2718mm) long and shall have a baked navy powder coated finish. Each upright is clearly Marked at men’s, women’s, junior high, elementary, and tennis heights. A rubber foot shall be Attached to the bottom of the upright to prevent floor damage when the upright is set on the floor. A rubber foot shall also be attached to the top of the pole to keep the adjustment slider in the Channel.
Adjustment Sliders: Adjustment sliders shall be constructed of ¾” (19mm) x 1-1/2” (38mm) Aluminum tubing with 1/8" (3.175mm) wall thickness. Adjustment sleeves shall be finished with a Baked silver powder coat. Adjustment sleeves shall slide in the channel of the upright and shall be Fixed in place by a spin down handle. One adjustment sleeve shall have a winch attached and a Pulley at the top of the sleeve. The opposite sleeve shall have a j-hooks to attach the net top and Bottom. Each sleeve has a handle to assist in height adjustments.
Winch: The net shall be tensioned by way of a worm gear winch. The winch shall have a 20:1 Gear ratio, a heavy-duty steel frame and a custom-molded plastic cover. The winch shall attach to The upright that has the pulley and shall have a nylon leader strap and steel cable to attach to the Net.
Features:
- Lightweight and easy to set up
- Height strength upright made of 3" (76mm) O.D. extruded aluminum
- Navy blue powder coated upright with silver powder coated sliders
- Easy adjustment regardless of competitive height
- Use at all levels of volleyball, tennis and badminton
- Nylon leader strap allows for safety and easy net attachment
- Requires 3" floor sleeves - sold separately
- Warranty: poles and pistons, five-year; parts and winch, one-year
Vinyl Colors
Information Regarding Padding Only: WARNING: This product contains chemicals known to the state of California to cause cancer, birth defects, and other reproductive harm.
